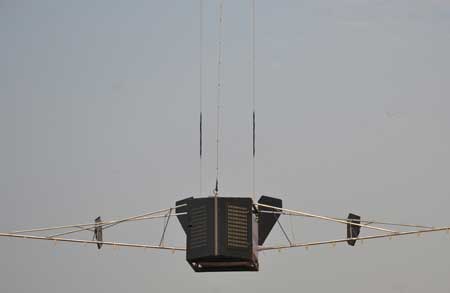

2600-475 VERSAPPLIER
For cargo hook equipped helicopters capable of 5100lbs. external loads
System Components
- Hopper: Durable chemical resistant polypropylene construction.
- Frame and Hardware: Epoxy coated aluminum support structure with stainless steel hardware for corrosion resistance.
- Boom Assembly: 2" Booms can be rotated for desired nozzle position relative to airflow across orifices.
- Cyclic Control: Allows pilot control of pumps, boom valve, flow control and operation of diesal engine. Remote control operations from inside helicopter.
- Boom Valves: Electric motor driven,provides negative pressure on boom in OFF position.
- Power Supply: Electric start HP Yanmar diesel engine.
Specifications
| Net Weight | 775 lbs. |
| Gross Weight | 5055 lbs. |
| System Capacity | 475 gallons |
| Standard Power | 6.4 HP gasoline |
| Optional Power | 12VDC |
| Pump Capacity | 300 GPM |
| Boom Span | 32 feet |
| Spray Width | 32-100 feet |
| Nozzles | 17 total |
Optional hopper size, motors and pumps available.
Contact ISOLAIR for special application.
