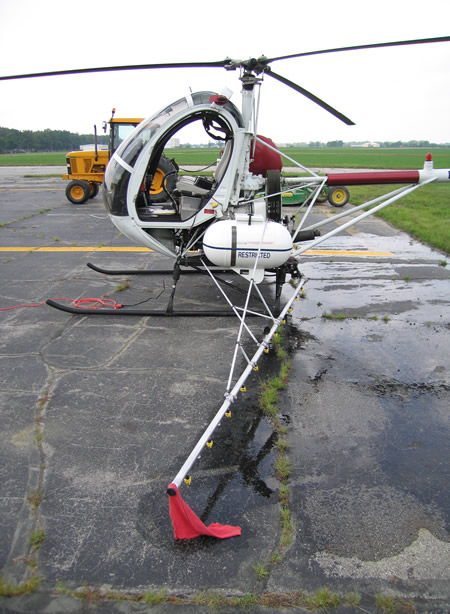

2700-300 INITIATOR

For Hughes/Schweitzer Series 300 Helicopters

This light-weight lift assembly features a 60-gallon external side-mounted
fiberglass tank and the pump is hydraulic motor driven. Cyclic control
allows pilot control of pumps, boom valve, emergency dump, and flow control.

System Components

  • Tank Assembly: External side-mounted fiberglass tank mounted to external hardpoints. Tank attaches with quick-release pins for fast and easy installation.
  • Pump: Hydraulic motor driven, flow: 100 GPM at 30 PSI.
  • Boom Valve/Flow Control: Boom valve puts negative pressure on boom in OFF position, Flow Control allows in flight boom pressure adjustments.
  • Cyclic Control: Allows pilot control of pumps, boom valve, emergency dump and flow control.
  • Boom Assembly: Outboard booms can be rotated for desired nozzle position.
2700-300 Initiator
2700-300 Initiator
Download Brochure

Specifications

Net Weight 119 lbs.
System Capacity 60 gallons
Boom Span 29 feet
Swath 40-60 feet
Air Speed VNE 60 MPH
Power Requirements 12 or 24 VDC
Amperage Draw 10 amps
Nozzles 54 total
