4600-205 ELIMINATOR II
For Bell Model 205/201/UH-1H Helicopters
Though similar to the S61, this fire-fighting tank system has a medium-lift
capacity that requires less space and will perform to perfection.
System Components

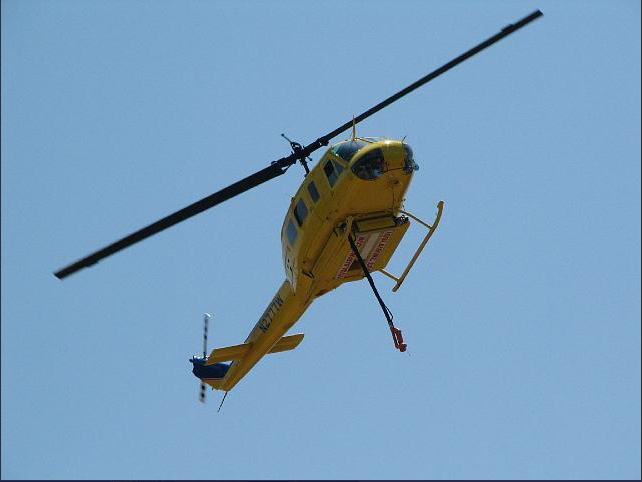

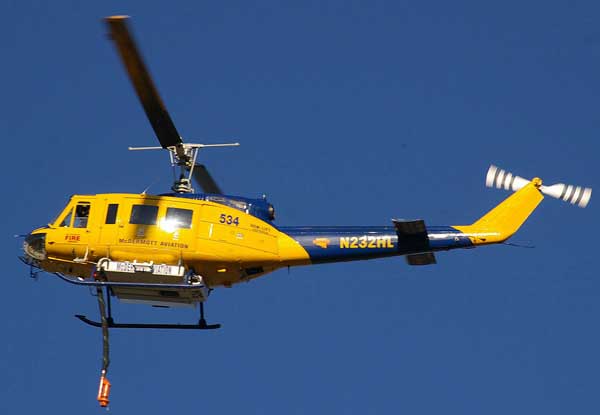

- Tank Assembly: External belly-mounted fiberglass and aluminum tank mounted to external hardpoints. Tank attaches with quick-release pins for fast and easy installation.

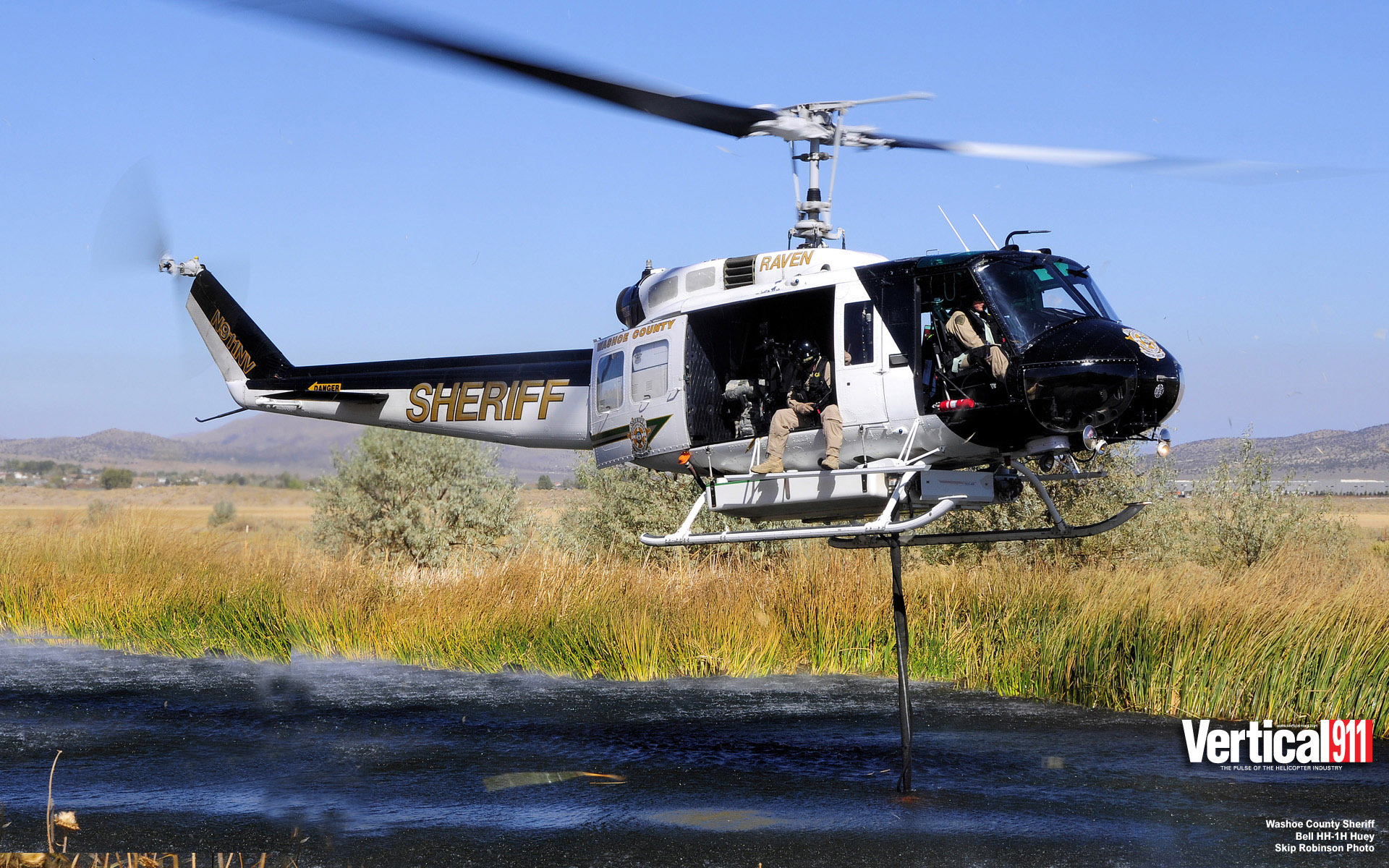

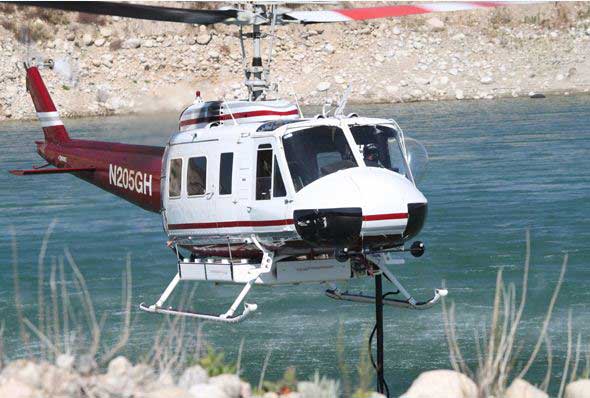

- Refill Pump: Electrically driven, with in-flight pump and hose assembly emergency release capability.

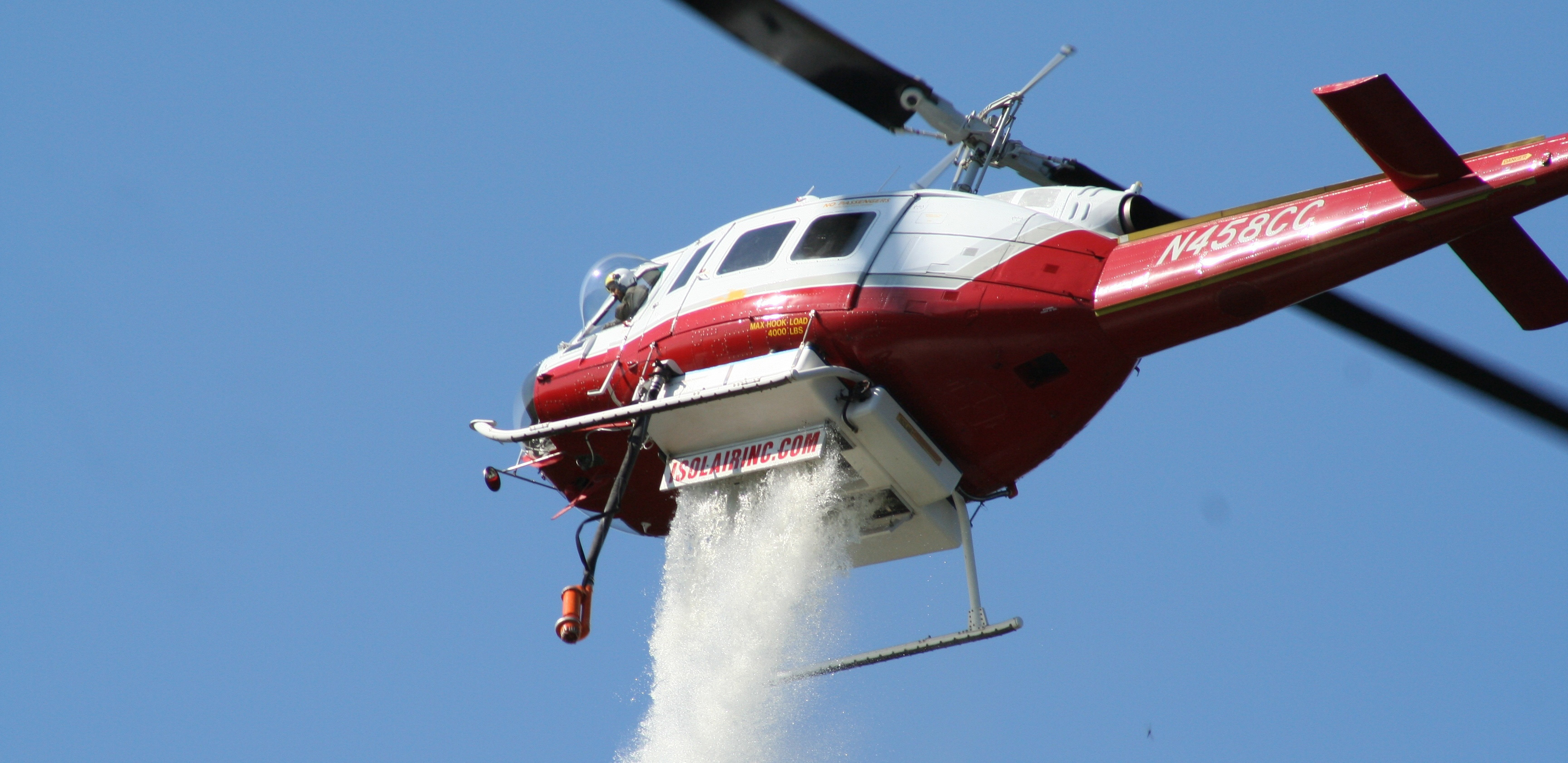

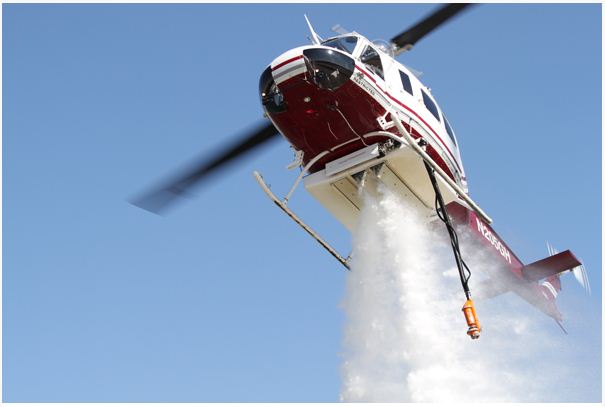

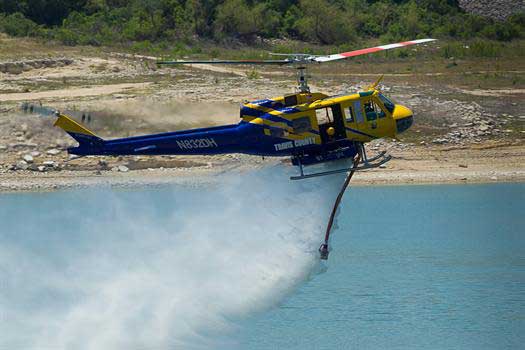

- Dump Doors: Electrically actuated, hydraulically operated. Fail safe system; doors will open with the loss of electrical power. Door selection switch allows for separate operations of each door for longer drops.
- Cyclic Control: Allows pilot to control loading, mixing, dump volume and drop length.
Specifications
| Net Weight | 416 lbs. |
| Gross Weight | 3342 lbs. |
| System Capacity | 350 gallons |
| Chemical Capacity | 27.2 gallons |
| Amperage Draw (refill) | 90 amps |
| Power Requirements | 24VDC |
| Hover Fill Rate (max) | 270 GPM |
| Hover File Time(probe submerged) | 55-75 secs. |
| VNE (water drop) | 70 knots |
| VNE (tank empty, pump stored) | 110 knots |
