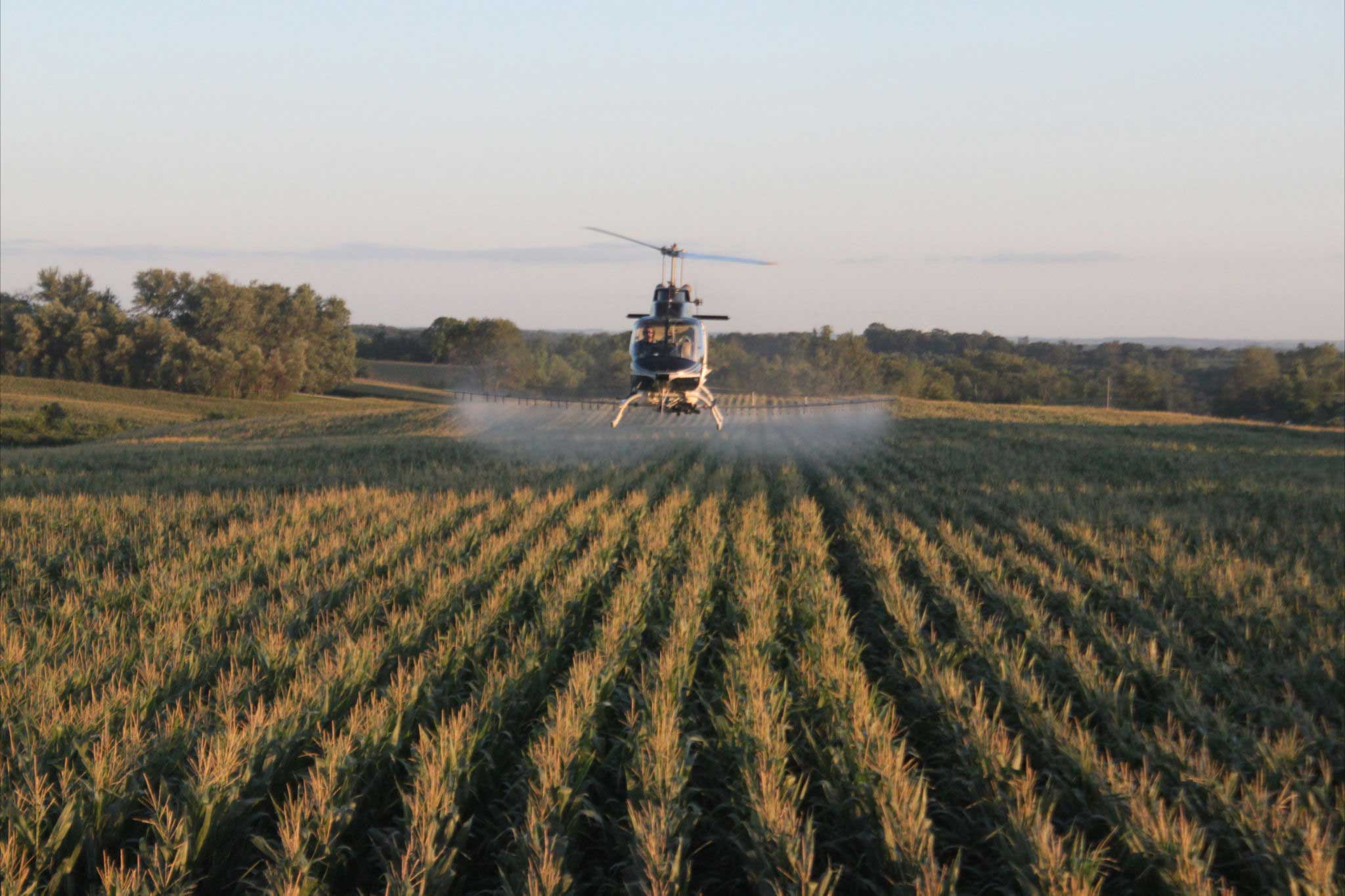

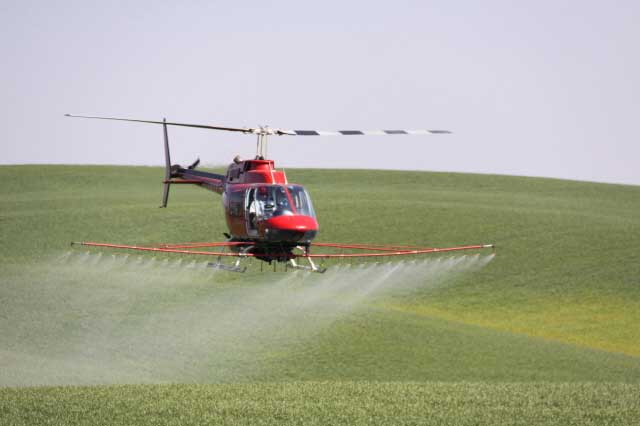

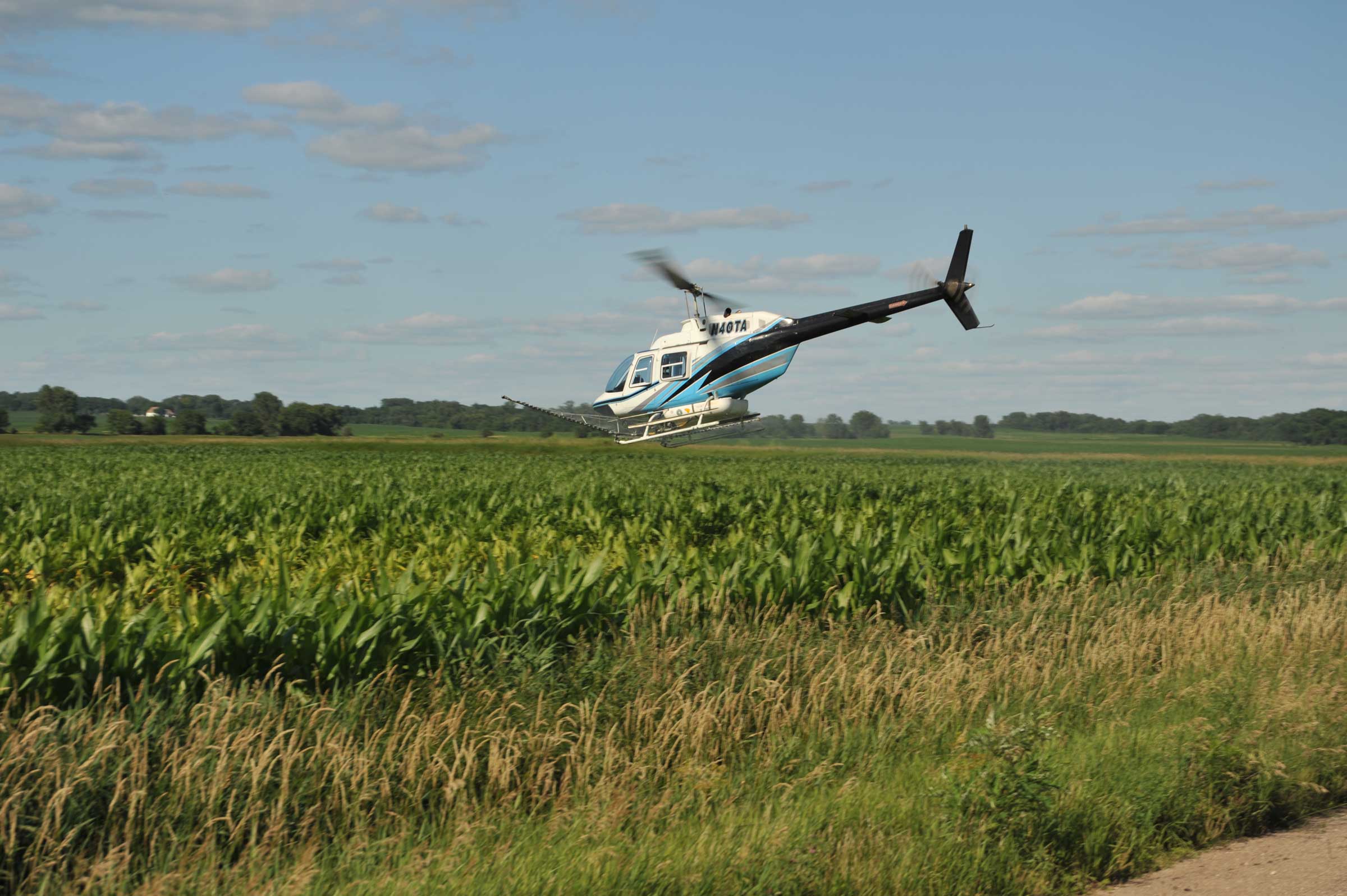

3900-206 INNOVATOR II
For Bell 206B Series Helicopters
Faa STC No. SH4796NM
EASA I.M.R.S. 01346
System Components

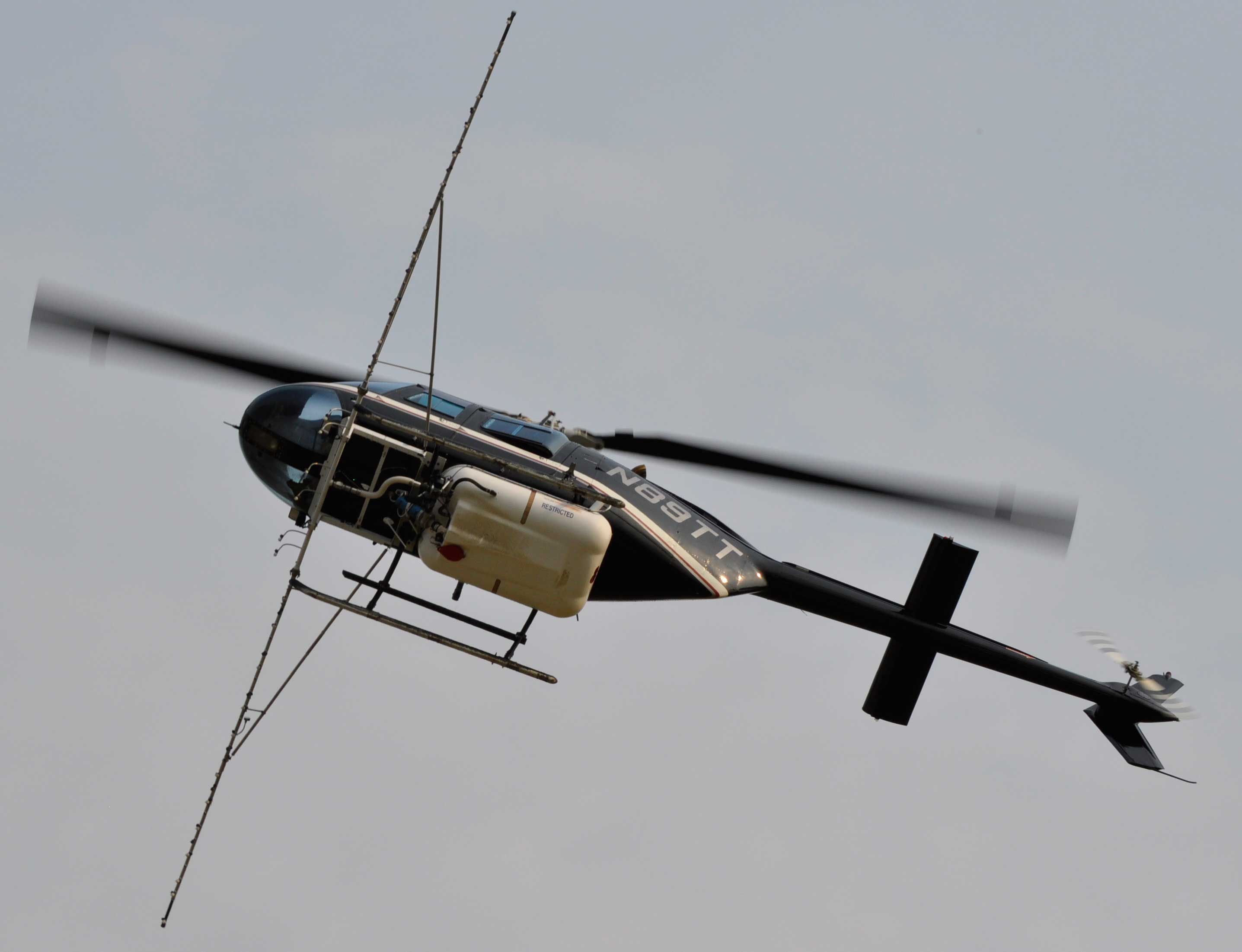

- Tank Assembly: External side-mounted fiberglass and aluminum aerodynamic tanks. Tank attaches with quick-release pins for fast and easy installation.
- Pump: Electric motor driven, flow: 100 GPM at 30 PSI.
- Boom Valve/Flow Control: Boom valve puts negative pressure on boom in OFF position, Flow Control allows in flight boom pressure adjustments.
- Cyclic Control: Allows pilot control of pumps, boom valve, emergency dump and flow control.

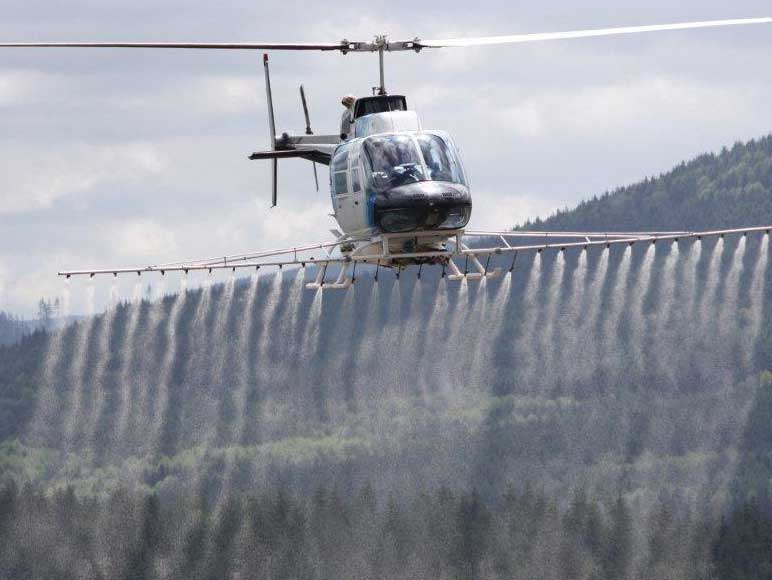

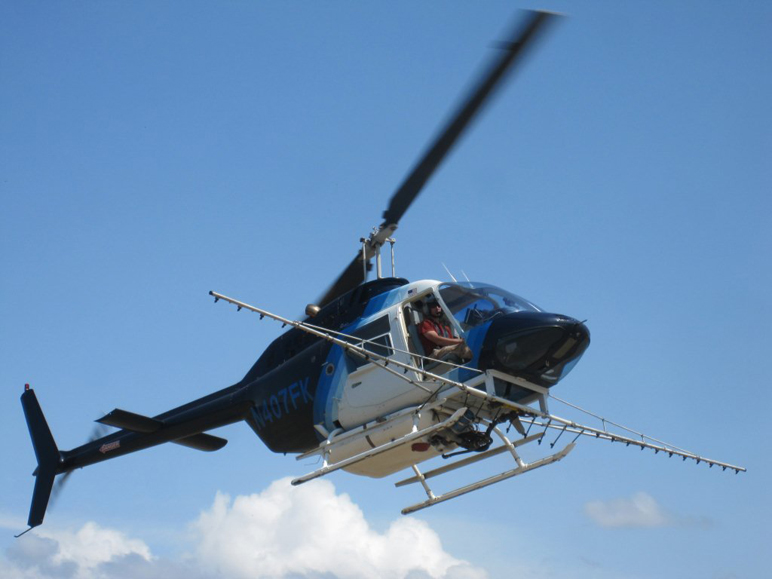

- Boom Assembly: Outboard booms can be rotated for desired nozzle position.
- Forward Mounted Booms: Optional
Specifications
| Net Weight | 200 lbs. |
| System Capacity | 130 gallons |
| Boom Span | 32 feet |
| Swath | 40-60 feet |
| Air Speed VNE | 103 MPH |
| Power Requirements | 28 VDC |
| Amperage Draw | 105 amps |
| Nozzles | 60 total |
