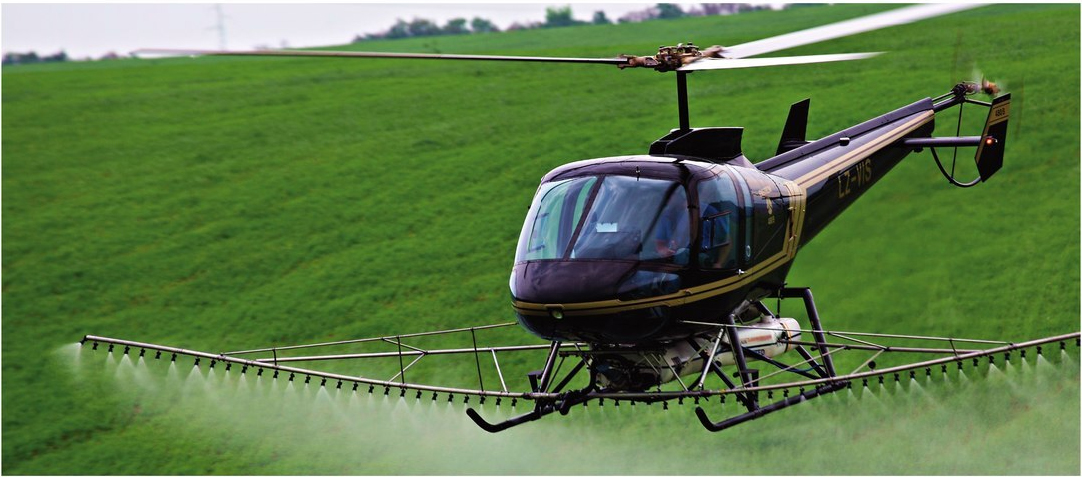

3900-480 INNOVATOR II
For Enstrom Model 480 Helicopters
FAA STC No. SR02813CH
EASA STC No. 10039386
CAAC Validation No. VSTC0553
Estrom model 480 helicopters require a light-weight external belly-mounted
fiberglass tank secured to external hard points. This tank attaches with
quick-release pins for fast and easy installation.
System Components
- Tank Assembly: External belly-mounted fiberglass tank mounted to external hardpoints. Tank attaches with quick-release pins for fast and easy installation.
- Pump: Electric motor driven, flow: 100 GPM at 30 PSI.
- Boom Valve/Flow Control: Boom valve puts negative pressure on boom in OFF position, Flow Control allows in flight boom pressure adjustments.
- Cyclic Control: Allows pilot control of pumps, boom valve, emergency dump and flow control.
- Boom Assembly: Outboard booms can be rotated for desired nozzle position.
Specifications
| Net Weight | 194 lbs. |
| System Capacity | 130 gallons |
| Boom Span | 29 feet |
| Swath | 40-60 feet |
| Air Speed VNE | 85 MPH |
| Power Requirements | 28 VDC |
| Amperage Draw | 90 amps (adjustable) |
| Nozzles | 53 total |
